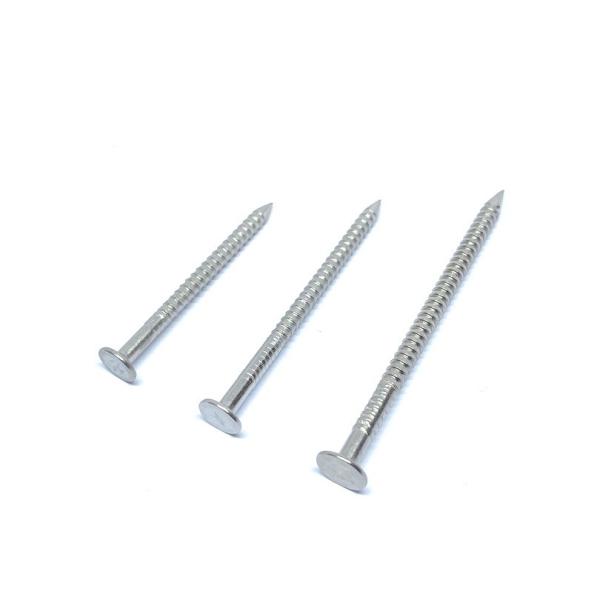

316 Grade Stainless Steel Annular Ring Shank Hardie Construction Nail
There are many types in stainless steel loose nail range. According to the different shanks, it can be divided into smooth shank nail, hollow shank nail, ring shank nail, twist shank nail, double twist shank nail and other special shank nail. According to the different heads, it can be divided into flat head nail, lost head nail, decking nail, rose head nail, crown head nail, oval head nail, right angle head nail and other special head nail. Various heads and shanks can be freely combined and matched.
Stainless steel generally has A2 and A4, there are more stainless steel material grades to see in the following sheet.
Nail diameter and length can be customized according to customer's requirements, the scope is shown in the following table.
Nail Material , Stainless Steel Grade
| SUS | Chemical Composition (%) |
| C≤ | Si≤ | Mn≤ | P≤ | S≤ | Cr≤ | Ni | Mo | other |
| 304 | 0.08 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-10 | | |
| 304HC | 0.08 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-10 | | Cu 2-3 |
| 304L | 0.03 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-10 | | |
| 316 | 0.08 | 1.00 | 2.00 | 0.035 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | |
| 316L | 0.03 | 1.00 | 2.00 | 0.035 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | |
| 201CU | 0.12 | 1.00 | 7.5-10.0 | 0.045 | 0.030 | 13.5-16 | 3.5-5.5 | 0.5 | N≤0.1 |
| D668/204CU | 0.12 | 1.00 | 11.0-15.0 | 0.045 | 0.030 | 12.5-14.0 | 1.6-2.5 | 0.6 | N≤0.1 |
Specifications
| Wire OD (mm) | 1.5/1.6/1.7/1.9/2.0/2.15/2.5/2.75/2.8/3.0/3.05/3.4/3.75/4.0/4.2/4.5/5.0 |
| Length (mm) | 15/17/19/20/25/32/38/40/45/50/65/70/80/90/100/120/150 |
| | other size produce according to customer's request |
Labels
If you require your company name, your part code or barcode printing, this can also be added.
